Generadores de oxígeno
AmcareMed oxygen generators are medical devices designed to provide oxygen therapy to patients who require supplemental oxygen. Our oxygen generators are crafted with advanced technology to efficiently extract oxygen from ambient air, ensuring a high purity of oxygen for therapeutic use.
Detalle del producto
AmcareMed medical oxygen generator system could supply pure oxygen for all kinds of hospitals and clinics continuously. Medical Oxygen Generators System uses state-of-the-art Pressure Swing Adsorption (PSA) technology to separate the oxygen from the surrounding air efficiently. This ensures that patients receive a consistent and adequate supply of oxygen.
Our Oxygen plant equipment put the air as raw material, zeolite molecular sieve as adsorbent, under the normal temperature low pressure, using the selectivity of zeolite molecular sieve for oxygen adsorption. The purity is 93%±3%. In addition to the existing oxygen generators, we can also customize the oxygen generator system according to the installation conditions of the customer site and can be installed on-site for customers.
Working Principle
After being dried and purified, the medical air enters the adsorption tower through a switching valve. In the adsorption tower, oxygen gas gathers at the top of the adsorption tower and then enters the oxygen storage tank. Dust, gérmenes, and peculiar smell are removed by different filters to achieve high quality oxygen. Our oxygen plant allows the hospital to have stand-alone oxygen production capability directly on the facility site.
Características técnicas
- Oxygen Generators Capacity: 3Nm3/h~100Nm3/h( single unit)
- Medical Oxygen Purity: 93%±3% (with PSA technology)
- Fuente de alimentación: 380V/220V
- Very simple and easy to installed
- Latest components to ensure smooth performance
- Oxygen for medical use is the best alternative to liquid oxygen supply and filled cylinders
- Out Pressure: 0.3~0.55 Mpa (ajustable)
- Operation Noise: ≤85dB(Un)
- Higher separation efficiency AmcareMed oxygen generators have higher separation efficiency than other PSA oxygen generators of the same type, requiring only a relatively small amount of air to obtain more oxygen
- Easy to Install and Maintain All parts of the oxygen generator will be commissioned before leaving the factory and sent to the installation site together, making installation very easy. Si es necesario, we will arrange professional installation personnel to install and guide on site.
- Automatic and stable operation 24/7 – 365 days fully automatic operation. R eliable, tested and controlled components ensure smooth performance. Control and checking via monitoring control system automatically, real-time display and monitoring pressure, purity, flow rate, operating condition of each unit and with alarm function.
- Reliable Performance AmcareMed oxygen generators are engineered for stability and reliability, delivering a continuous and stable flow of oxygen to patients during their treatment sessions.
- Características de seguridad AmcareMed oxygen generators adhere to stringent safety standards for medical devices, including EN ISO 7396, En 60601, ES IEC 61000, and Directive 93/42/EEC. They are equipped with multiple safety features to ensure the well-being of patients during treatment.
- Rendimiento energético AmcareMed oxygen generators are designed to be energy-efficient, helping to reduce energy consumption and lower treatment costs over time.
Typical Layout

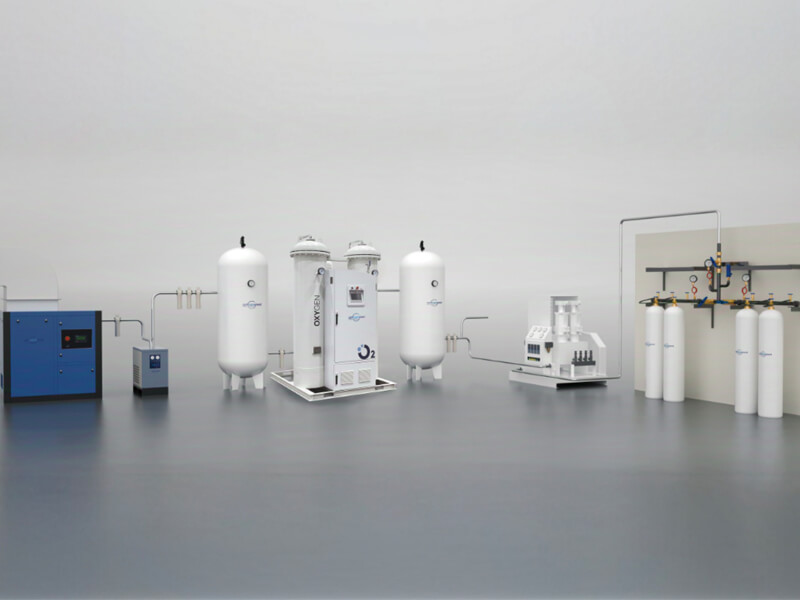

Single line oxygen generator system
Single line oxygen generator system without booster and filling ramp
Modelo
| Modelo | Oxygen Capacity | Compresor de aire | Booster Compressor | Installation Area(㎡) | ||||
| Nm³/h | Lpm | Feed air required (m³/min) |
Poder (kW) |
Poder (kW) |
Capacidad (m³/h) |
Single line solution |
Dual line solution |
|
| OY-50 | 5 | 83 | 0.875 | 7.5 | 3 | 5 | 25 | 45 |
| OY-80 | 8 | 133 | 1.4 | 11 | 5.5 | 8 | 28 | 48 |
| OY-100 | 10 | 167 | 1.75 | 15 | 5.5 | 10 | 30 | 50 |
| OY-150 | 15 | 250 | 2.625 | 18.5 | 11 | 15 | 30 | 50 |
| OY-200 | 20 | 333 | 3.5 | 22 | 11 | 20 | 40 | 80 |
| OY-250 | 25 | 417 | 4.375 | 30 | 11 | 25 | 40 | 80 |
| OY-300 | 30 | 500 | 5.25 | 37 | 11 | 30 | 45 | 90 |
| OY-400 | 40 | 666 | 7 | 55 | 18.5 | 40 | 45 | 90 |
| OY-500 | 50 | 833 | 8.75 | 55 | 18.5 | 50 | 50 | 95 |
| OY-600 | 60 | 1000 | 10.5 | 75 | 18.5 | 60 | 60 | 110 |
| OY-800 | 80 | 1333 | 14 | 90 | 30 | 80 | 65 | 115 |
| OY-850 | 85 | 1416 | 14.8 | 90 | 30 | 85 | 65 | 115 |
| OY-1000 | 100 | 1666 | 17.5 | 110 | 30 | 100 | 70 | 135 |
| Nota: The installation area is not an absolute area, we will design according to the specific location. | ||||||||
