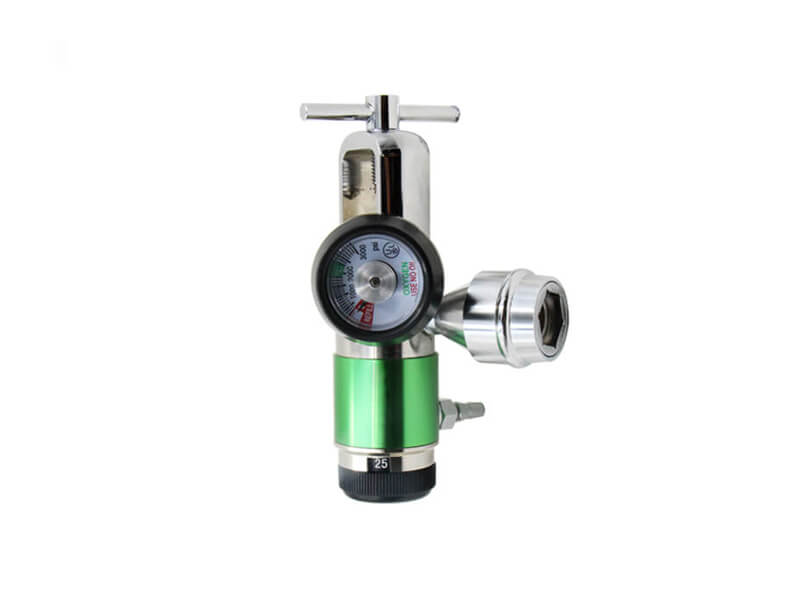

Click Style CGA870 Pin Index Yoke Regulator with Schrader Outlet
Click style CGA870 Pin Index Yoke regulator features a pin index connector and a Schrader outlet, and is specifically designed to supply gas to devices such as ventilators via connection to portable medical gas cylinders.
Detalle del producto
The click style CGA870 regulator uses a pin-index yoke connection and features a solid brass granular mesh filter at the inlet to effectively block impurities and ensure clean and stable gas flow. Users can easily and accurately select preset oxygen flow rates of 0-1/0-2/0-4/0-6/0-8/0-15/0-25 L/min via rotation. The included Schrader outlet provides multiple outlet standards to meet diverse market needs. It also features a diss/nipple port for connecting oxygen tubing, masks, and treatment equipment.
CaracterÃsticas técnicas
- CGA870 pin index yoke inlet
- Click-style flow control
- Multiple outlet standards available: German (Estruendo), Japanese, Británico, Francés, and others
- Aluminum alloy body or all brass body is available
- Stable outlet pressure: 0.4 Mpa
- Threaded Outlet & Nipple Outlet Options
- 3000Presión máxima de entrada psi
- Válvula de alivio interna
Modelo
| Modelo | Conexión de entrada | Conexión de salida |
| CR-12-870S | CGA870 | INSULTAR |
| CR-13-870S | CGA870 | Hose Barb |
