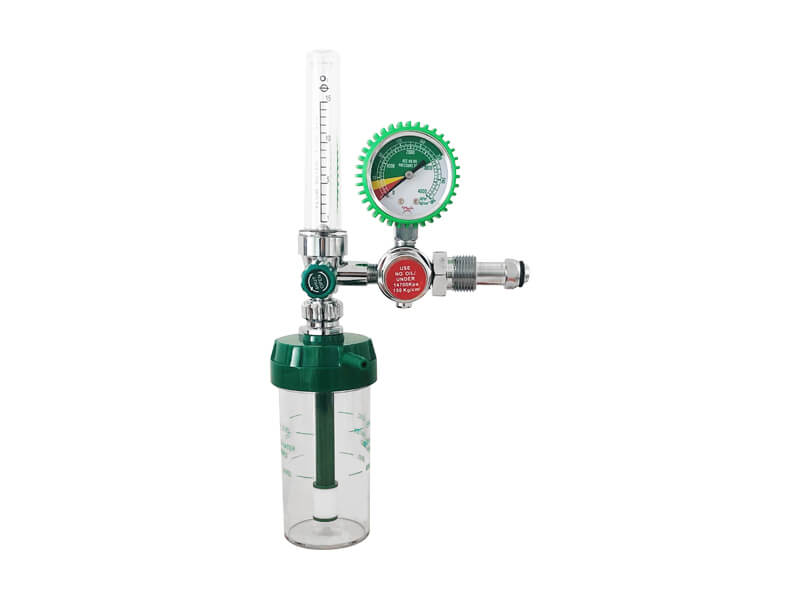

Reguladores de caudalímetro tipo pistón
Oxygen regulator is a decompression device for cylinder oxygen, which ensures that the export pressure remains stable when the import pressure and the outlet flow change. Mainly used in clinical and home oxygen-absorbing therapy.
Detalle del producto
Amcaremed provides a flexible integrated valve regulator to meet hospital cylinder gas requirements. With an inlet connection for oxygen or air according to the various standards used in different countries. All of the flowmeter regulators have easily accessible flow adjustment knobs to provide hospitals with precise control of multiple gas sources.
Características técnicas
- Piston type
- Tipo de gas: Oxígeno, Aire medicinal
- Flow range: 0-5, 0-10, 0-15Lpm
- Chromed forged brass body for endurable and compact
- Backpressure compensated flowmeters
- 3000 psi maximum inlet pressure
- Easy to read flow rate window
- Accesorios: humidifier bottle, cannula
- Connecting thread: G 5/8, CGA540, G 5/8, G3 / 4, DIN477, and CGA870.
Modelo
| Modelo | Delivery flow | Inlet connection | Working pressure |
| AM-O-GR-02 | 0-5, 0-10, 0-15Lpm | CGA540 | 50PSI |
| AM-O-GR-06 | 0-5, 0-10, 0-15Lpm | CGA870 | 50PSI |
| AM-O-GR-08 | 0-5, 0-10, 0-15Lpm | CGA992 | 50PSI |
| AM-O-GR-10 | 0-5, 0-10, 0-15Lpm | CGA992 | 50PSI |
| AM-O-GR-12 | 0-5, 0-10, 0-15Lpm | CGA992 | 50PSI |
