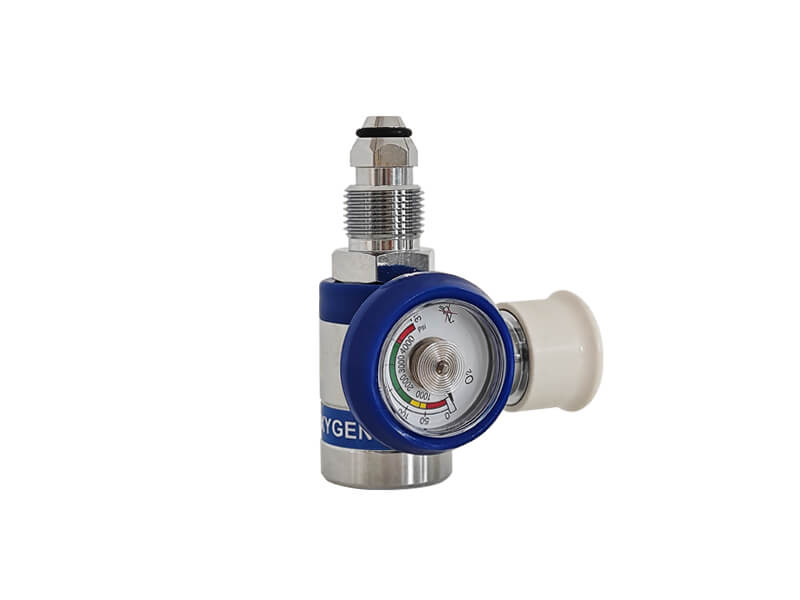

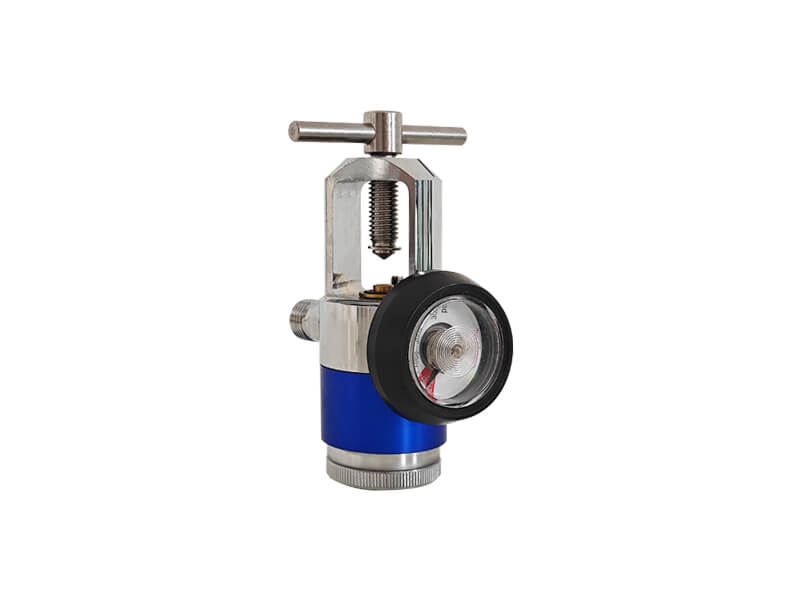

Brass Body Click Style Regulator
The brass body click-type regulator is made of chrome-plated or nickel-plated brass. Compared to regulators with aluminum bodies, the brass housing offers greater resistance to mechanical shock and corrosion, making it more suitable for harsh environments and long-term use.
Detalle del producto
This brass body click style pressure regulator features a solid brass body and rotary flow control, allowing users to quickly and accurately select the preset flow rate. Equipped with a clear pressure gauge for monitoring cylinder pressure, it also includes a built-in safety relief valve and inlet filter to ensure clean oxygen. Multiple output interfaces are available, including DISS thread, Schrader, or hose connectors, to meet various international standards and clinical requirements.
CaracterÃsticas técnicas
- All brass internal for maximum durability
- Longer service life compared with aluminum-body regulators
- Standard or extended connection options available
- 3000Presión máxima de entrada psi
- Sintered brass inlet filter for longer service life
- Supply Schrader outlets in various standards, including DIN, Bs, Jis, Ohmeda and French
- Outlet threads: Hose barb / INSULTAR / Schrader / customized
Modelo
| Modelo | Cylinder connection type | Outet Connection |
| CR-B-540 | CGA540 | DISS/Hose Barb/Schrader outlet |
| CR-B-870 | CGA870 | DISS/Hose Barb/Schrader outlet |
| CR-B-992 | CGA992 | DISS/Hose Barb/Schrader outlet |
| CR-B-992H | CGA992 with handtight wheel | DISS/Hose Barb/Schrader outlet |
