Multiple Gas Dual Line Regulating Station

Detalle del producto

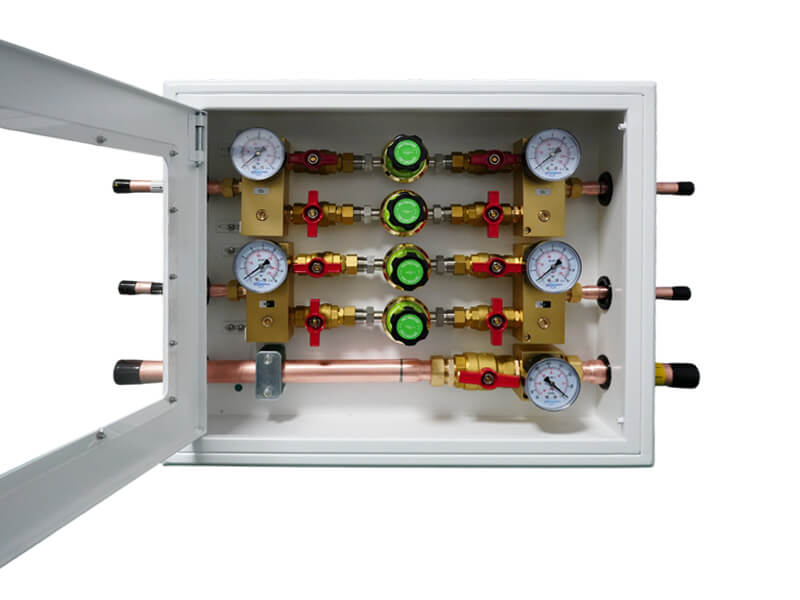

Amcaremed multiple gas regulating stations adopt a dual-line structure to ensure stable outlet pressure and reliable gas delivery to downstream medical areas.

As a secondary pressure regulating unit in the medical gas pipeline system, the station reduces upstream gas pressure to a stable downstream working pressure suitable for hospital departments and terminal units.

The station is equipped with pressure gauges for real-time monitoring of inlet and outlet pressure conditions. Suitable for Oxygen (O₂), Aire medicinal, Vacío, Nitrógeno (N₂), Óxido nitroso (N₂O), Dióxido de carbono (CO₂), and other medical gases.

Características técnicas

• Transparent viewing window
• Flow capacity: 30m³/h, larger flow capacities available
• Supports simultaneous connection of multiple gas sources
• Doble línea, uno para el funcionamiento normal y otro para la copia de seguridad
• Presión de entrada: 8-11 barra; Presión de salida: 3-5 barra
• Compact wall-mounted design
• Optional alarm monitoring system

Modelo

AM-RS-400
