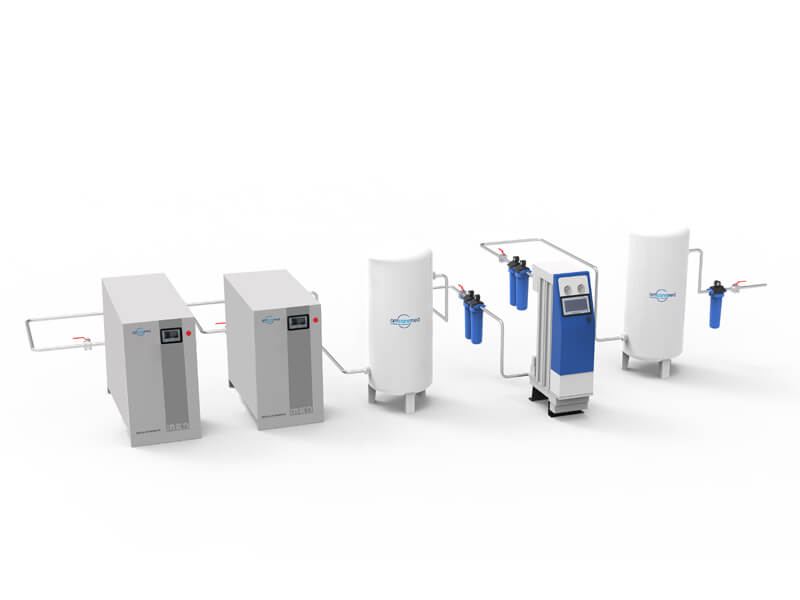

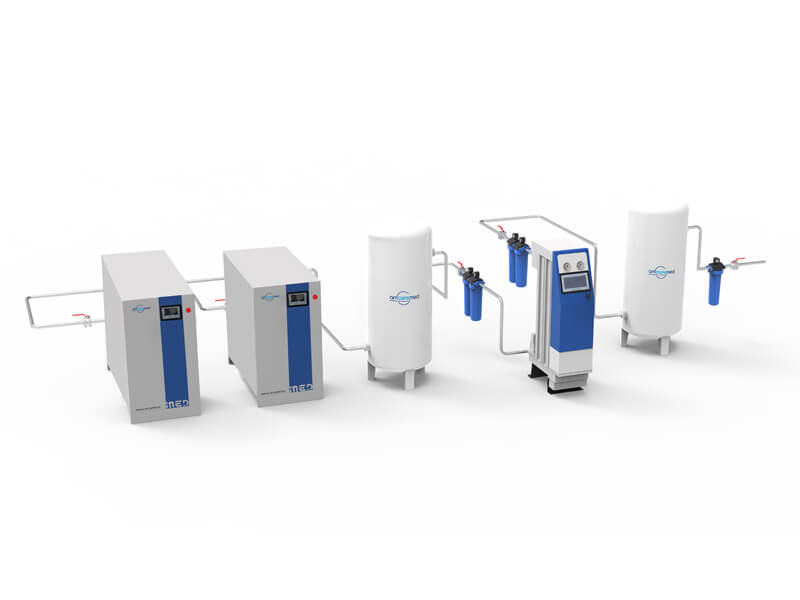

Screw Medical Air Compressor
The screw medical air compressor is a volumetric gas compression machine that works with rotary motion.
AmcareMed screw medical air compressor drives the compression unit at the optimum speed for the application by means of an efficient drive system. They are completely maintenance-free during normal operation. It has the advantages of simple structure, small size, no wearing parts, maintenance-free, reliable operation, long life, easy maintenance and high efficiency.
Product Detail
AmcareMed rotary screw medical air compressor is designed and manufactured according to ISO13485 and EN 61000. Adopt high-efficiency three-stage oil and gas separation method (cyclone separation method, sedimentation separation method, fine filtration method) to make the oil content of compressed air at the outlet ≤ 2ppm.
Large diameter, low-speed low-noise fan: provide large air volume at the same time can effectively reduce fan noise. Fully enclosed silent design, in line with international working noise standards.
LCD high-definition touch display, PLC control. Humanized menu interface design. Multi-line operation parameters and history records can be displayed. Easy operation, query and maintenance.
Specifications
- Power: 5.5~132kw. FAD: 0.85~25m3/min
- No vibration and low noise, low speed of rotation,and direct connection
- The whole medical air compressor system is packaged and shipped for quick and easy installation, turn on the power to start running
- The special lubricating oil makes the performance of the compressor more excellent, and the 3-lip oil seal ensures no oil leakage and a long service life for the bare compressor
- Durability and long service life The compressor main unit is machined by the latest CNC machining center with high precision screw milling, grinding and other processing equipment to ensure 100% accuracy of the rotor profile.
- Optimal rotation method The reasonable rotation brings good operating conditions to the compressor, and also makes installation, commissioning and maintenance easy, while obtaining maximum rotation efficiency and longer service life.
Model
Model | Power (kw) | FAD (m³/min) | Working Pressure (Bar) | Outlet Dimension | Weight (kg) | Dimension (mm) |
UD5-8C | 5.5 | 0.85 | 8 | 3/4″ | 280 | 850*640*880 |
UD8-8C | 7.5 | 1.00 | 8 | 3/4″ | 350 | 850*640*880 |
UD11-8C | 11 | 1.65 | 8 | 3/4″ | 450 | 1100*750*1150 |
UD15-8C | 15 | 2.20 | 8 | 3/4″ | 460 | 1100*750*1150 |
UD18-8C | 18.5 | 2.90 | 8 | 1″ | 620 | 1200*880*1450 |
UD22-8C | 22 | 3.60 | 8 | 1″ | 640 | 1200*880*1450 |
UD30-8C | 30 | 5.00 | 8 | 1 1/4″ | 900 | 1200*1000*1360 |
UD37-8C | 37 | 6.20 | 8 | 1 1/4″ | 1060 | 1350*1000*1640 |
UD45-8C | 45 | 7.70 | 8 | 1 1/2″ | 1150 | 1350*1080*1500 |
UD55-8C | 55 | 9.80 | 8 | 2″ | 1750 | 1950*1320*1570 |
UD75-8C | 75 | 13.00 | 8 | 2″ | 1840 | 1950*1320*1570 |
UD90-8C | 90 | 15.40 | 8 | 2″ | 2030 | 2100*1320*1700 |
