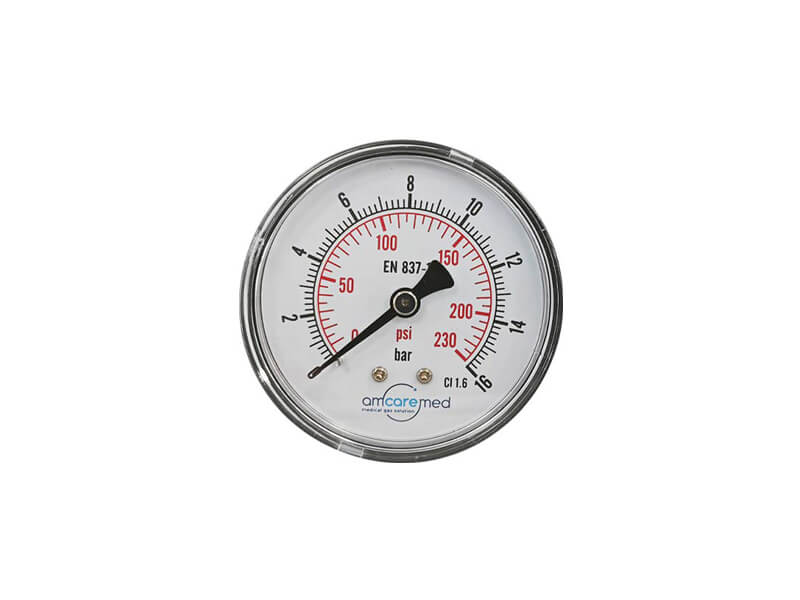

Pressure Gauge
The pressure gauge is for use specially in measuring water level, such as in central heating system, also available for any other applications that do not attack the brass measuring system.
Product Detail
AmcareMed pressure gauge is used to measure and indicate the pressure of the measuring medium. The change of the measured pressure drives the pointer of the sector gear segment to rotate with the help of the connecting rod, indicating the corresponding pressure value. Applied to water supply and gas supply systems, thermal pipe networks, oil and gas transmission and other fields.
Specifications
- Nominal sizes: 1.5”，2”，2.5”

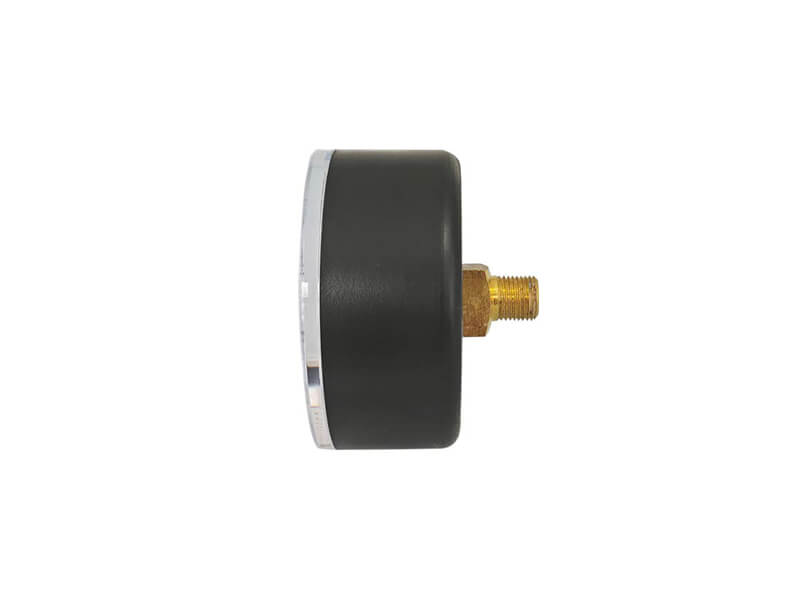

- Connection: BSP 1/8” for 1.5”, BSP 1/4” for 2”，2.5”
- Scale Pressure Range, according to EN 837-1/5: 0 to 0.6/l /l .6/2.5/4/6/10/1 6/2 5 bar
- Operating Temperature: Ambient: -20°C to 60°C, medium: 60°C maximum
- Material :
- Case:
ABS Window: snap on clear acrylic;
Wetted parts: copper alloy bourdon tube and brass connection;
Movement: brass
- Options:
NPT, BSPT or other process connection
Double dial range or other dial ranges
Snap in acrylic window
