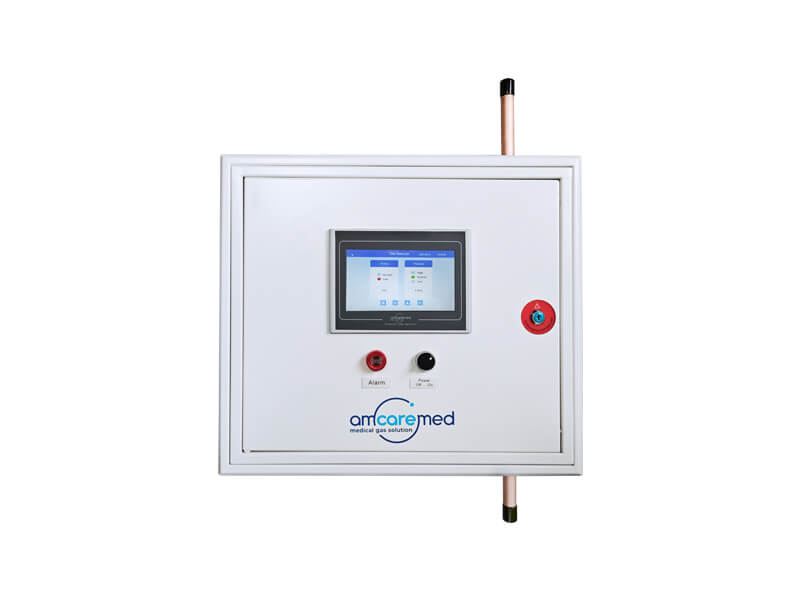

Oxygen Flow and Purity Monitor Panel
The oxygen flow and purity monitor panel is a highly integrated device used to continuously monitor oxygen flow and purity levels.
Product Detail
Amcaremed oxygen flow and purity monitor panel connects to the oxygen pipeline, continuously tracks oxygen flow, purity, and also monitors pressure, carbon monoxide and carbon dioxide levels to ensure the delivered oxygen meets medical specifications for oxygen generator systems.
Equipped with both audible and visual alarms, the control panel alerts staff immediately if oxygen levels deviate from the desired parameters, ensuring quick corrective action.
Features a clear digital interface with real-time readings of oxygen flow, purity, pressure, carbon monoxide and carbon dioxide levels , enabling medical professionals to monitor system performance at a glance.
Specifications
- Optional detection parameters: flow, purity, pressure, dew point, CO and CO2 levels, and temperature ambient
- Measuring range: Oxygen concentration: 0~100%; Pressure: 0 – 16 bar
- With digital display integrating control functionalities in one box
- Historical alarm records display
- Friendly interface, in language: English
- Support Modbus 485 communication
Model
AM-MP-01
