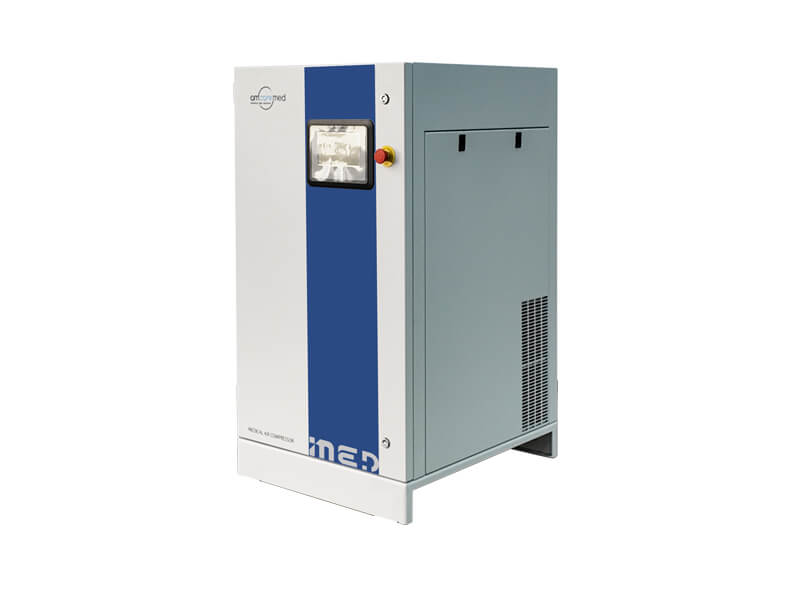

Oil-free Scroll Medical Air Compressor
Medical air compressor system is designed to provide continuous medical quality air.
Product Detail
AmcareMed oil-free scroll medical air compressor is completely oil-free and there is no risk of oil leakage. It is designed and manufactured according to ISO13485.
It consists of two or more air compressors, air tank, control system, cold dryer, filter, etc. With various filter and drying, stages remove harmful gases, bacteria, oil and water from compressed air. It is an ideal choice for the medical device industry and other occasions requiring clean compressor air.
Specifications
- Provide 100% oil-free air, any oil does not come into the compressing chamber
- Dew point temperature: – 23°C ˉ – 46°C
- Exhaust diameter G1/2 “, G3/4″, G1″, G1-1/4”
- Filter: pre-filter 1, pre-filter 2, pre-filter 3, bacterial filter
- The whole medical air compressor system is packaged and shipped for quick and easy installation, turn on the power to start running
- The system is compact and has a small footprint
- High-quality air-end The air-end structure is very compact, the number of main parts is 1/10 of the piston type, also less than the screw type air compressor. The low-pressure structure and the frame structure optimize the bearing force; Using asymmetric lines, the exhaust gas is continuously stable. The waist-type exhaust port avoids the energy loss of over-compression or under-compression.
- Intelligent control system The intelligent control system uses the liquid crystal display screen, can remote control and multiple hosts chain control. The system adopts PLC control, displays all status information. The number of compressor operating unit automatically increased and decreased while ensuring the required amount of compressed air so as to ensure the steady supply air to the system.
Model
System | Model | Power (KW Each) | Power (HP Each) | Capacity(@100PSIG) m³/min | Noise level DB(A)±3db |
Duplex | SMA02D | 1.5 x 2 | 2 x 2 | 0.14 | 45 |
SMA03D | 2.2 x 2 | 3 x 2 | 0.25 | 46 | |
SMA05D | 3.7 x 2 | 5 x 2 | 0.4 | 48 | |
SMA10D | 7.5 x 2 | 10 x 2 | 0.88 | 53 | |
SMA15D | 11.2 x 2 | 15 x 2 | 1.2 | 56 | |
SMA22D | 16.5 x 2 | 22 x 2 | 1.7 | 58 | |
Triplex | SMA10T | 7.5 x 3 | 10 x 3 | 1.76 | 59 |
SMA15T | 11.2x 3 | 15 x 3 | 2.4 | 61 | |
SMA22T | 16.5 x 3 | 22 x 3 | 3.4 | 63 | |
Quadplex | SMA15Q | 11.2 x 4 | 15 x 4 | 3.6 | 66 |
SMA22Q | 16.5 x 4 | 22 x 4 | 5.1 | 69 |
