Dual Line Regulating Station
Dual Line Regulating Station is mainly used on the floor of the ward or the gas inlet of the operating room to adjust the pressure of the pipeline to a certain pressure range. It is also used to open/cut the pipeline passage in this area for easy maintenance of pipelines and equipment.
Product Detail

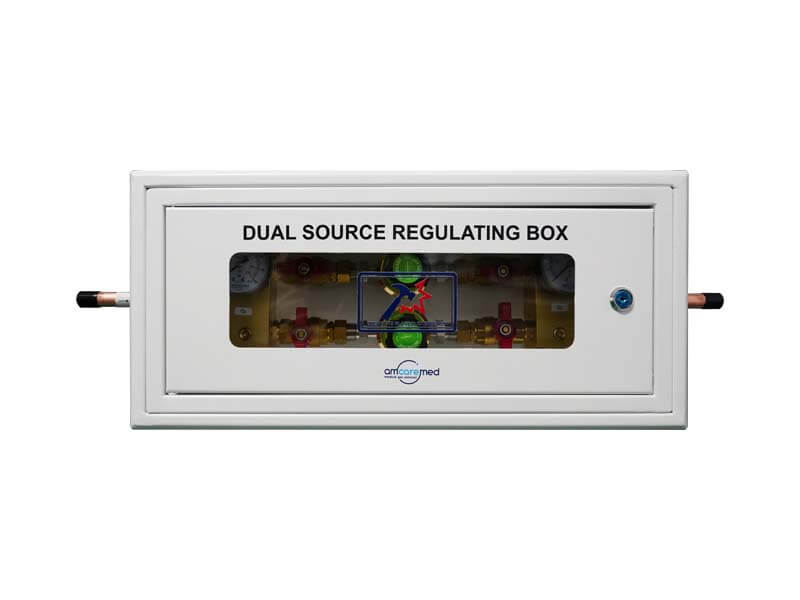

Amcaremed medical gas pressure regulating station is painted with stainless steel and can be mounted on the wall. The front pressure observation window uses transparent plexiglass. The front of the box is equipped with a safety lock. Generally, the front door is locked to prevent others from opening it easily. If an emergency occurs, the box door can be quickly opened to quickly cut off the medical gas passage.
Dual line regulating station can control the pressure of the medical gas pipeline at 3~5bar. It can also buffer the pipeline pressure, reduce the impact on the patient and the application risk. The vacuum suction pump system and the AGSS system don’t need to be decompressed. Medical gases such as oxygen, compressed air, and nitrogen dioxide generally are generally installed dual line regulating station in the pipeline for decompression.
Specifications
- Transparent window
- Dual line, one for normal operation and one for backup
- The gas leakage valve is set to adjust the output pressure
- Built-in safety valve
- Input pressure range 8~1 0 bar, output pressure range 3~5 bar, flow rate 150 L/min
- Equipped with emergency security lock, to open the door quickly in case of emergency
Model
AM-RS
