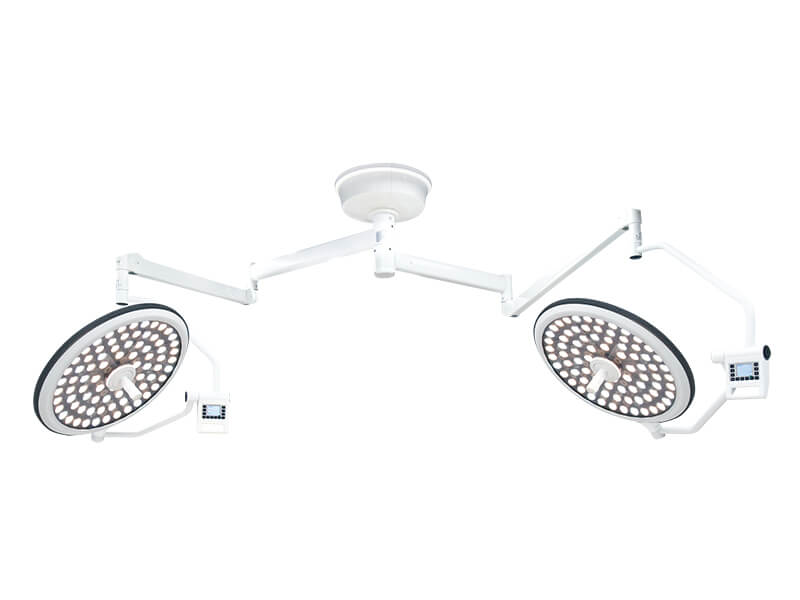

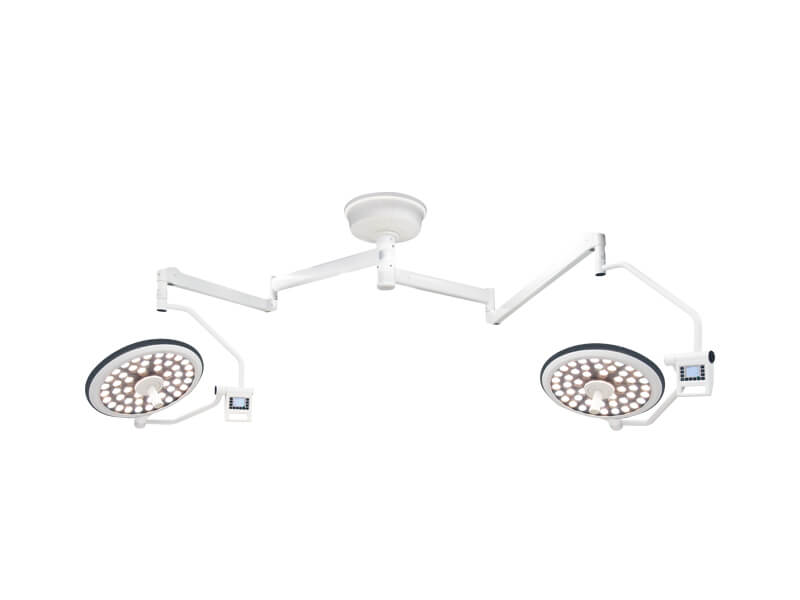

Dual Ceiling Mount Surgical Lights
AmcareMed LED series dual ceiling mount surgical lights can widely be used in diversified operation occasions to meet the demand for illumination. It is the ideal illumination instrument for the modern operating theater.
Product Detail
Adjustable color temperature
Through reliable beam synthesis control technology, the color temperature can be adjusted between3800K-5000K under the condition that the color rendering index is 95. Surgeons can adjust the color temperature according to their habits or different surgical sites to achieve the ideal tissue contrast and achieve the best tissue resolution.
One key low light (Endoscope)
The operation shadowless lamp is equipped with a one-key low light (endoscope)lighting mode, which is convenient for the surgeon to quickly switch from the general mode. lt does not interfere with the doctor’s field of vision and the observation of tissues during endoscopic surgery.
Features
- Automatic 8-stage continuous light adjustment
- Color temperature adjustable. There are three color temperature sections, respectively is 3800 k, 4400 k and 5000 k
- Equipped with light and handy balance arm suspension system, six group joints move together flexibly and position stability
- With circular arc handle to facilitate adjustment of lamp position
Main Technical Data
| AM-700/500LED | AM-700/700 LED | AM-500/500 LED | |
| Illuminance | ≥160,000Lux | ≥160,000Lux | ≥160,000Lux |
| ≥140,000Lux | ≥140,000Lux | ≥140,000Lux | |
| Colour temperature | 3800±500K 4400±500K 5000±500K | 3800±500K 4400±500K 5000±500K | 3800±500K 4400±500K 5000±500K |
| Colour reduction index(Ra) | 95 | 95 | 95 |
| Total irradiance | 544W/m2 534W/m2 | 544W/m2 544W/m2 | 534W/m2 534W/m2 |
| Size of light field | 250-300mm | 250-300mm | 250-300mm |
| Service life of illuminant | 50,000h | 50,000h | 50,002h |
| Power supply voltage | AC110-240V 50Hz/60Hz | AC110-240V 50Hz/60Hz | AC110-240V 50Hz/60Hz |
| Lowest height of installation | 2900mm | 2900mm | 2900mm |
| Total power consumption | 80W 60W | 160W | 120W |
| Total LED bulb quantity | 180pcs(18*6+12*6) | 216pcs(18*6+18*6) | 144pcs(12*6+12*6) |
| Illuminance depth | ≥1400mm | ≥1400mm | ≥1400mm |
| LED bulb | 3.3mW/m2lx | 3.3mW/m2lx | 3.3mW/m2lx |
| ENDO | YES | YES | YES |
Model
AM-700/500LED AM-700/700LED AM-500/500LED
