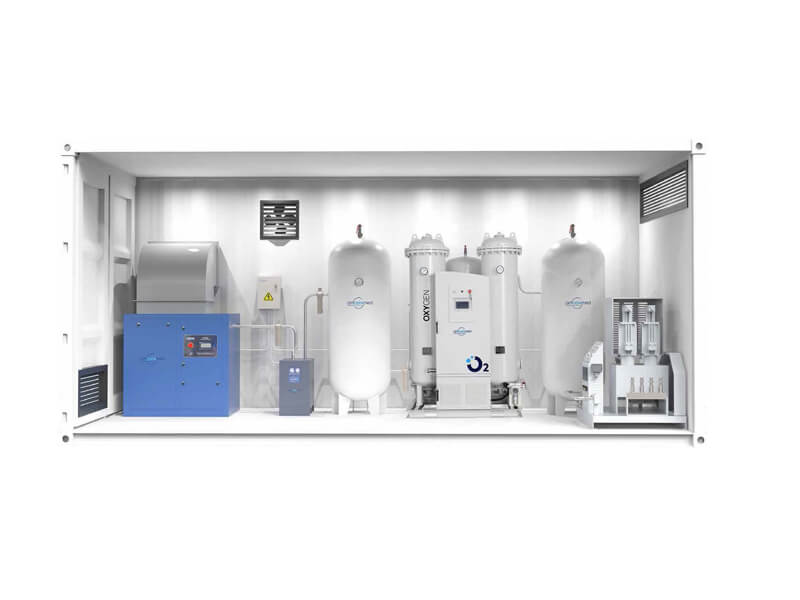

Containerized Oxygen Generator
The container oxygen generator is a complete set of oxygen generators pre-completed in a container. It is a mobile plug-and-play device, with the advantages of low cost, small area, simple operation, easy maintenance, quick on-site oxygen production, convenient switching, and no pollution.
Product Detail
AmcareMed containerized oxygen generator system can be regarded as a mobile oxygen center, which can continuously supply oxygen for different work sites. It can be widely used in medical, petrochemical, ozone production, and other industries and fields.
The system uses air as raw material and zeolite molecular sieve as adsorbent to separate oxygen from air by pressure swing adsorption (PSA) technology
Working Principle
The oxygen generator system mainly consists of air compressor, dryer, PSA oxygen generator, and booster compressor.
The air is compressed to working pressure by screw air compressor and then enters the dryer through the filter to remove oil, water, and dust. Finally, enter the air tank to store the necessary air for the PSA generator. Clean compressed air enters the PSA generator to separate oxygen and nitrogen.
Adsorption tower filled with zeolite molecular sieves. Molecular sieves adsorb nitrogen and allow oxygen to stream through. Adsorbent releases the impurities (mainly nitrogen) to complete adsorbent regeneration, oxygen accumulates on the top of the absorption tower, then enters to the oxygen tank.
After filtering, oxygen can be directly connected to the hospital oxygen pipeline or enter to booster compressor. After pressurization, oxygen is filled into the cylinder through the cylinder filling ramp.
Specifications
- Oxygen Generators Capacity: 3Nm3/h~100Nm3/h( single unit)
- Medical Oxygen Purity: 93%±3% (with PSA technology)
- Power supply: 380V/220V
- Latest components to ensure smooth performance
- Oxygen for medical use is the best alternative to liquid supply for filled cylinders
- Out Pressure: 3~0.55 Mpa (adjustable)
- Direct container loading from factory, easy to transport
- Simple installation, automatic operation or manual control according to user needs
- Exterior dimensions are mainly for 20′ and 40′ containers
- Best alternative to liquid supply for filled cylinders
