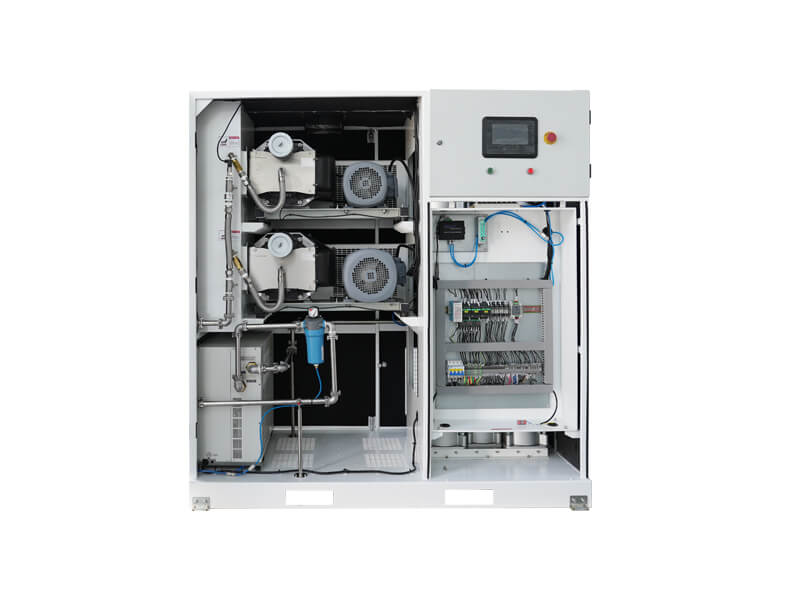

All-In-One Medical Oxygen Systems
AmcareMed all-in-one medical oxygen generation system uses air as raw material in the process of oxygen generation and only consumes electricity. High efficiency, low energy consumption, high oxygen separation rate. Oxygen purity can reach >93±3%
Features and Benefits
- Modular integrated design, compact structure, energy saving
- Long-lasting and stable operation can solve the problem of undurability in plateau areas
- It can prevent the molecular sieve of the oxygen generator from failing when encountering oil
- Lubricant free, no degreasing filter required
- Built-in moisture monitoring system to effectively protect the molecular sieve from failure in water
- Molecular sieve aluminum cylinder and advanced filling process reduce the problem of molecular sieve pulverization
- Intelligent touch screen control system
Model Parameters
| Model | Flow | Power | Pressure | Size | Weight |
|---|---|---|---|---|---|
| OY-006A | 0.6m3/h | 1.5Kw | 0.3-0.5Mpa | 1600*750*1300 | 420Kg |
| OY-01A | 1m3/h | 2.2Kw | 0.3-0.5Mpa | 1600*750*1300 | 480Kg |
| OY-03A | 3m3/h | 5.5Kw | 0.3-0.5Mpa | 1600*800*1500 | 550Kg |
| OY-05A | 5m3/h | 11Kw | 0.3-0.5Mpa | 1600*800*1920 | 750Kg |
| OY-10A | 10m3/h | 15Kw | 0.3-0.5Mpa | 1600*950*1920 | 950Kg |
